Electric Bike Hub Motor Wiring, Electric bikes (e-bikes) have rapidly gained popularity, offering an eco-friendly and efficient way to navigate through cities and enjoy leisurely rides. One crucial component of an electric bike is the hub motor, which powers the bike and provides assistance to the rider. However, to ensure the smooth operation of your e-bike, understanding the electric bike hub motor wiring is essential.
In this article, we will break down the importance of hub motor wiring, its components, and tips for troubleshooting and maintaining it.
What is a Hub Motor?
A hub motor is a type of motor located directly in one of the bike’s wheels, either the front or rear. It is powered by the bike’s battery and controlled by the controller, which determines how much power the motor should deliver based on factors like speed and rider input. Hub motors are generally more compact and efficient than other motor types and are especially popular in e-bikes due to their simplicity and smooth performance.
Key Components of Hub Motor Wiring
The wiring of an electric bike’s hub motor is crucial to ensure it functions properly. These wires connect various components of the e-bike system, from the battery to the motor and controller. Here’s an overview of the key parts involved in hub motor wiring:
- Motor Wires:

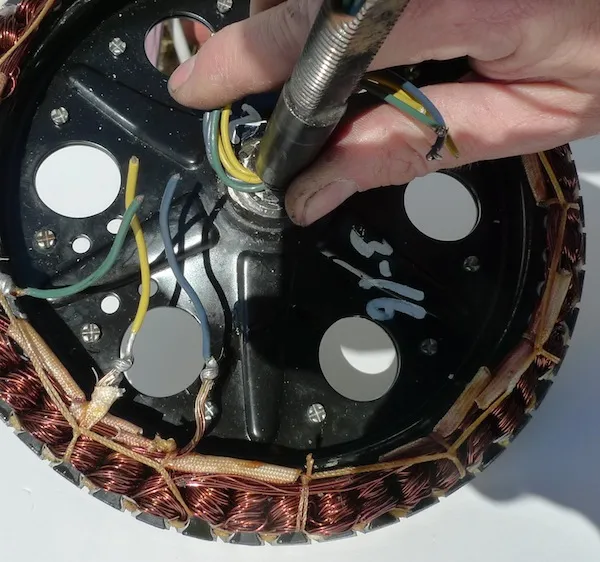

These are the primary wires that connect the hub motor to the controller. The motor typically has three main wires: Phase Wires (often color-coded in red, yellow, and green). These wires carry power from the controller to the motor itself. The phase wires are crucial for controlling the motor’s speed and direction. - Battery Wires:
The battery wires connect the motor to the battery, which provides the electrical energy needed for the motor to operate. These wires need to be properly insulated and gauge-appropriate to handle the current the motor requires. - Controller Wires:
The controller serves as the brain of the system, regulating the flow of electricity between the motor, battery, and throttle. It receives input from the throttle or pedal-assist sensor and determines how much power should be sent to the motor. The controller is typically connected to the motor and battery via wiring harnesses that transmit control signals. - Throttle Wires:
The throttle wiring connects the throttle on the handlebar to the controller, allowing the rider to regulate the speed of the e-bike. These wires often include a 5-pin or 6-pin connector, depending on the e-bike’s configuration. - Brake Cutoff Wires:
Brake cutoff wires are an important safety feature. They are connected to the brake levers and the controller. When the rider engages the brake lever, these wires send a signal to the controller to cut power to the motor, ensuring a smooth and safe stop.
Importance of Proper Wiring
Correct wiring of the hub motor is crucial for the following reasons:
- Power Delivery: Properly connected wires ensure that the motor receives the correct amount of power from the battery, allowing the bike to perform optimally.
- Safety: Faulty wiring can lead to electrical shorts, overheating, or even fires. Proper insulation and secure connections reduce the risk of accidents.
- Efficiency: Efficient wiring minimizes energy loss, ensuring that the motor runs efficiently and the battery lasts longer.
- Smooth Operation: Wiring that is properly configured and maintained ensures that the bike operates smoothly without interruptions, jerking, or inconsistent power delivery.
CYou Might Also Like These:ommon Hub Motor Wiring Issues and Solutions
Despite careful installation, wiring issues can arise due to wear and tear, environmental factors, or incorrect connections. Here are some common problems and how to troubleshoot them:
- Loose or Disconnected Wires:
- Problem: Loose connections can cause the motor to cut in and out or fail to start.
- Solution: Check all connectors and ensure they are securely attached. Inspect for any broken wires and replace if necessary.
- Damaged Insulation:
- Problem: Frayed or exposed wires can cause shorts or electrical failures.
- Solution: Inspect the wiring insulation regularly and repair or replace damaged parts. Always use electrical tape or shrink tubing for added protection.
- Controller Failure:
- Problem: If the wiring to the controller is damaged or loose, it can affect motor performance.
- Solution: Ensure that all controller wires are properly connected and that the controller is functioning correctly. If necessary, replace the controller.
- Battery Issues:
- Problem: Faulty wiring between the motor and the battery can result in insufficient power delivery.
- Solution: Check the battery connections, ensure proper voltage levels, and confirm that all connections are tight.
Tips for Maintaining Your Electric Bike Hub Motor Wiring
- Regular Inspections: Frequently check the motor wiring for any signs of wear or damage, especially in areas where the wires are subject to movement or friction.
- Use Quality Connectors: Always use high-quality connectors that are designed for e-bike systems. Poor-quality connectors can lead to poor performance and safety hazards.
- Avoid Overloading: Never overload the system with excessive power that could stress the wires, motor, or battery. Stick to the recommended voltage and amperage for your specific e-bike model.
- Weatherproofing: If you’re riding in wet conditions, consider weatherproofing the connections with waterproof connectors or sealing compounds to prevent water from causing short circuits.
Conclusion
The electric bike hub motor wiring plays a pivotal role in the efficiency, performance, and safety of an e-bike. By understanding the components and maintenance of the motor wiring, riders can troubleshoot issues and ensure their bike runs smoothly. Regular inspection, proper connections, and attention to detail will prolong the life of your e-bike and provide a safe, enjoyable ride for years to come.
